2011 LOUIS GARNEAU LGS-RSR4
TRAFFIC BLACK

FRAME MATERIAL 6061 ALUMINUM REPLACE END:YES
FRONT FORK ALLOY
REAR SUSPENSION UNIT NIL
HEAD SET FSA INTEGRATED
HANDLE BAR ALLOY FLAT (540mm)
STEM ALLOY A-HEAD (80/400mm, 100/450mm, 110/500mm, 120/550mm)
CRANK SET SHIMANO R2300 50/34T (170/400-450mm, 175/500-550mm
B/B(B/B WINDTH/AXLE) CARTRIDGE (68mm/110mm)
PEDAL WELLGO ALLOY
F/D SHIMANO R443
R/D SHIMANO R2300
SHIFTER SHIMANO R221
BRAKE TEKTRO MINI V BRAKE
BRAKE LEVER SHIMANO
FREEWHEEL SHIMANO HG50 12-25T 8-SPEED
CHAIN SHIMANO HG40
SADDLE LOUIS GARNEAU SPORTS
SEATPOST ALLOY 27.2mm (350mm)
HUB ALLOY QR 32H
RIM ALEX RACE28 700C
TIRE MAXXIS FUSE 700x25C

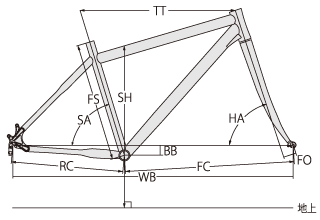

FRAME SIZE HEAD ANGLE SEAT ANGLE TOP TUBE FRONT CENTER REAR CENTER BB DROP FORK OFFSET WHEEL BASE STAND OVER HEIGHT 適応身長 (cm)
400 71.5° 73.5° 530 580 430 65 45 1001 664 150〜165
450 71.5° 73.5° 540 590 430 65 45 1011 702 160〜175
500 72.5° 73° 565 600 430 65 45 1022 741 170〜185
550 72.5° 73° 610 645 430 65 45 1067 783 180〜190

FS FRAME SIZE   RC REAR CENTER
HA HEAD ANGLE   BB BB DROP
SA SEAT ANGLE   FO FORK OFFSET
TT TOP TUBE   WB WHEEL BASE
FC FRONT CENTER   SH STAND OVER HEIGHT

製品仕様は予告なく変更される場合がございます。予めご了承ください。
